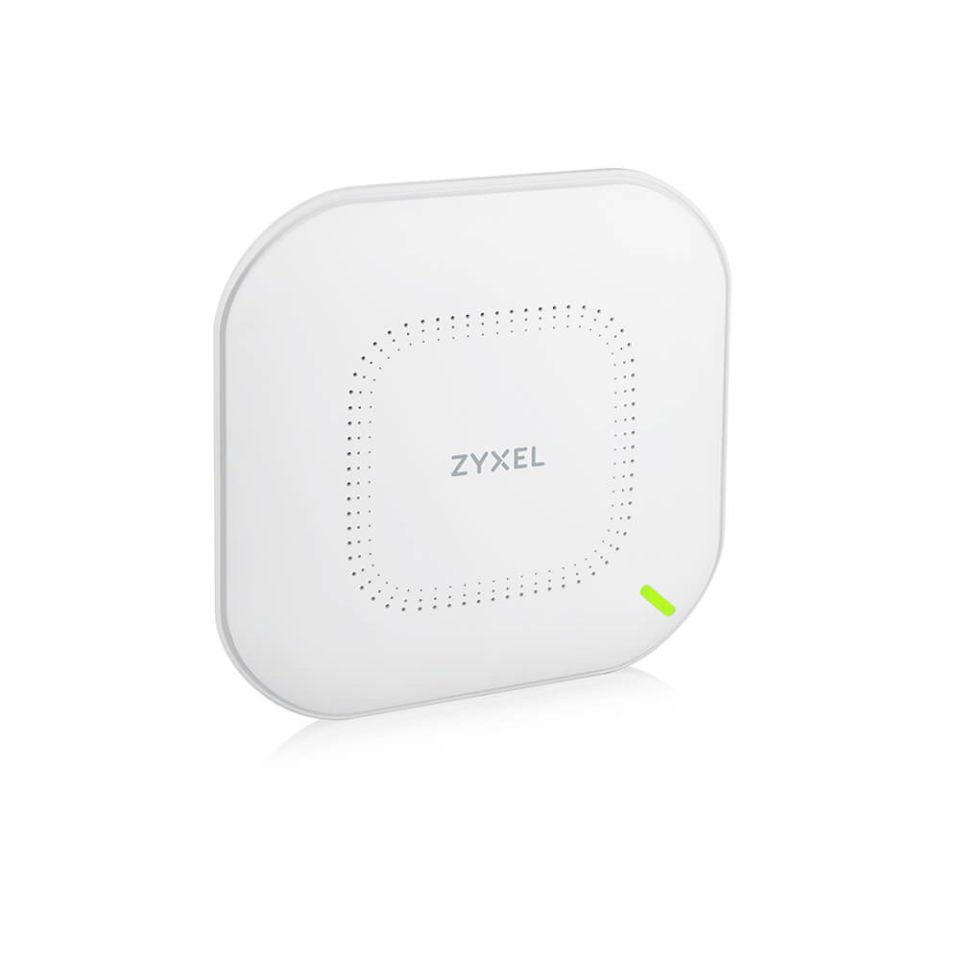

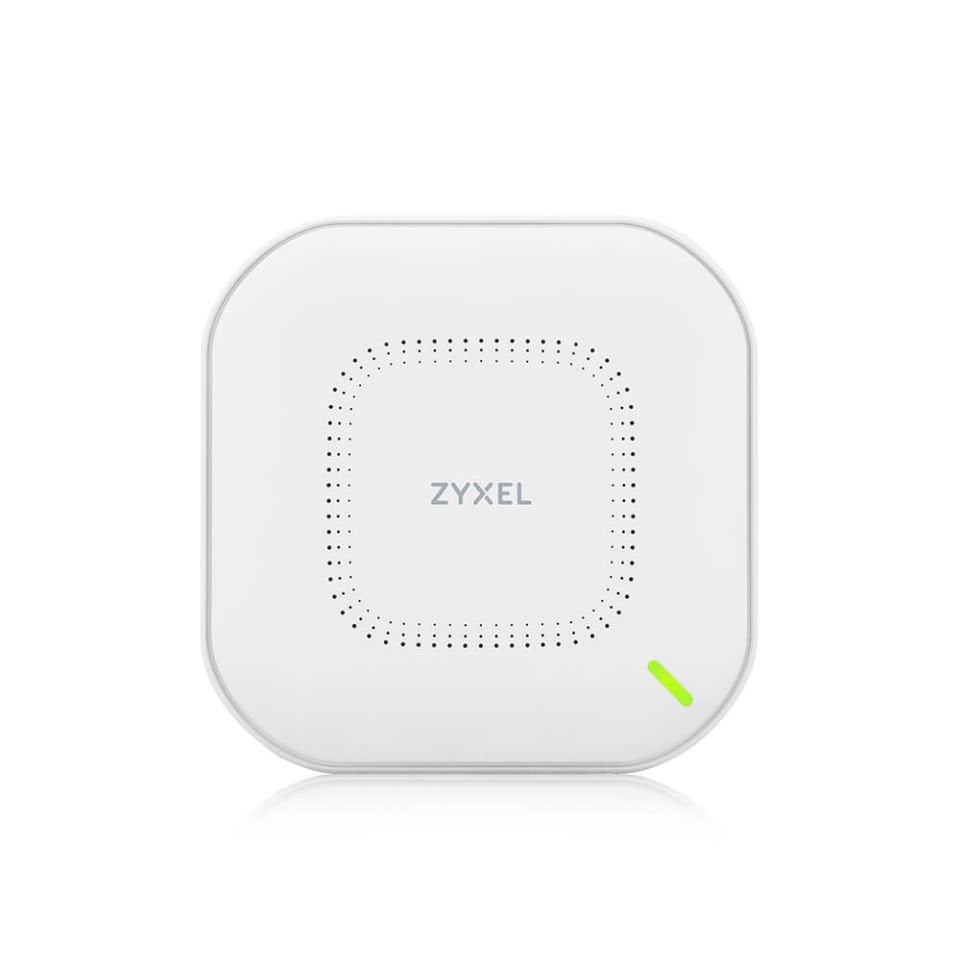

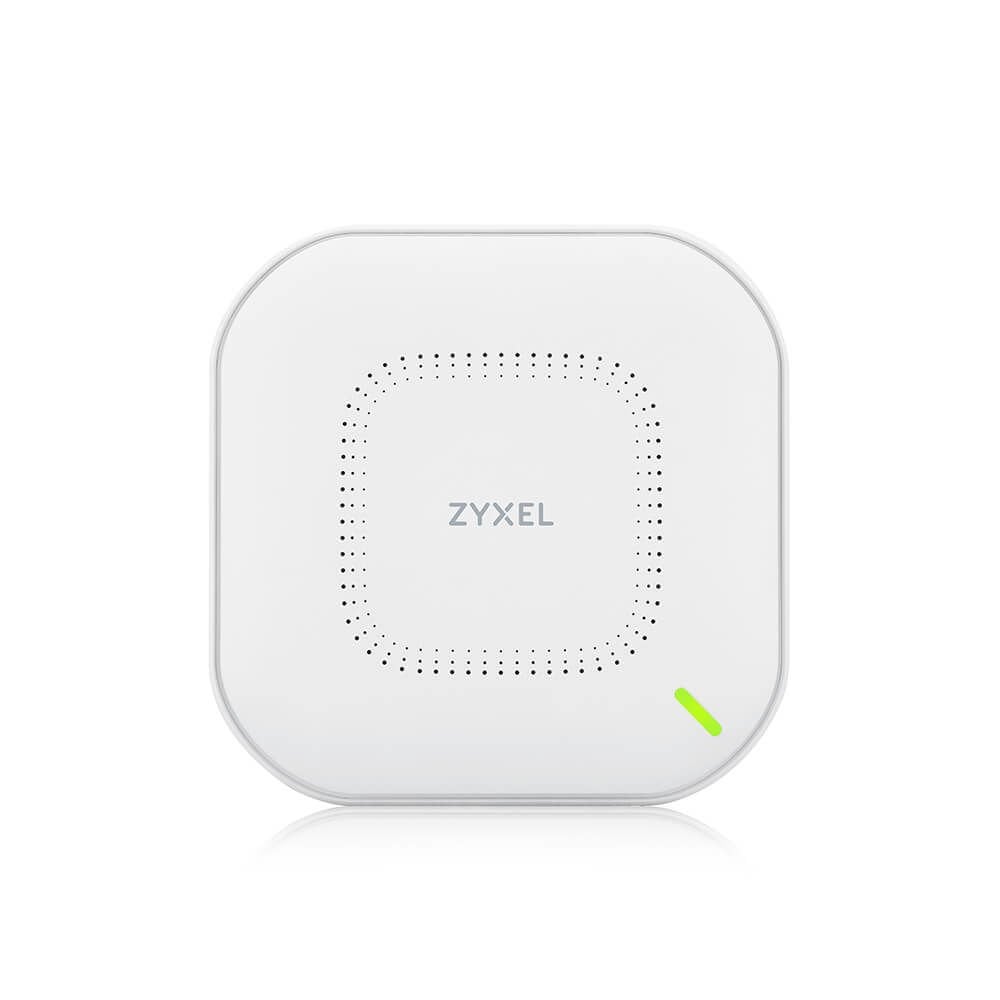

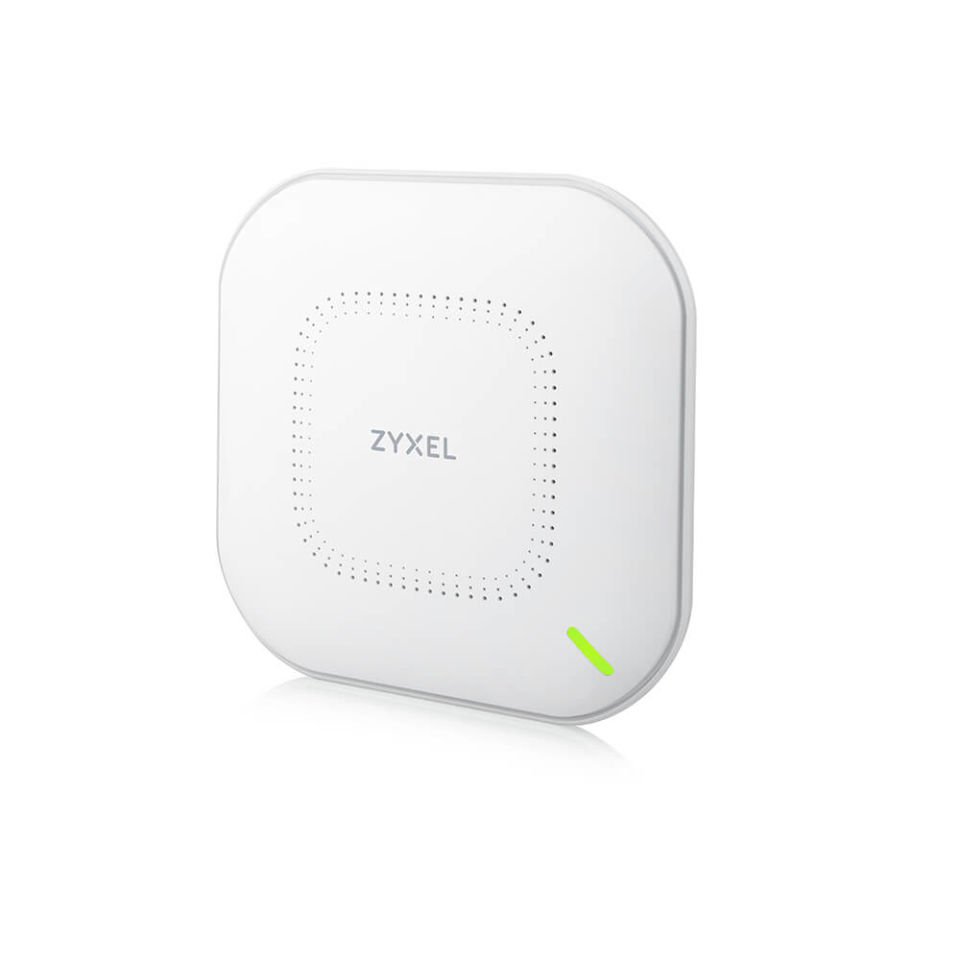

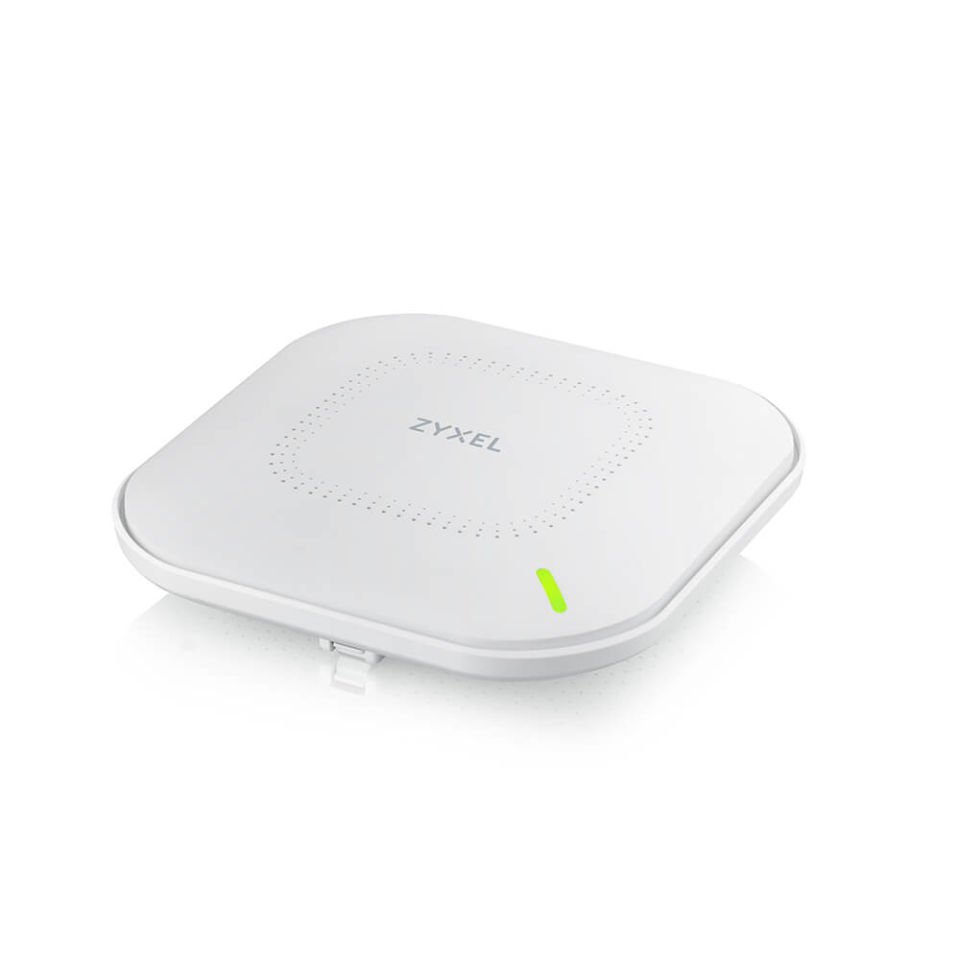

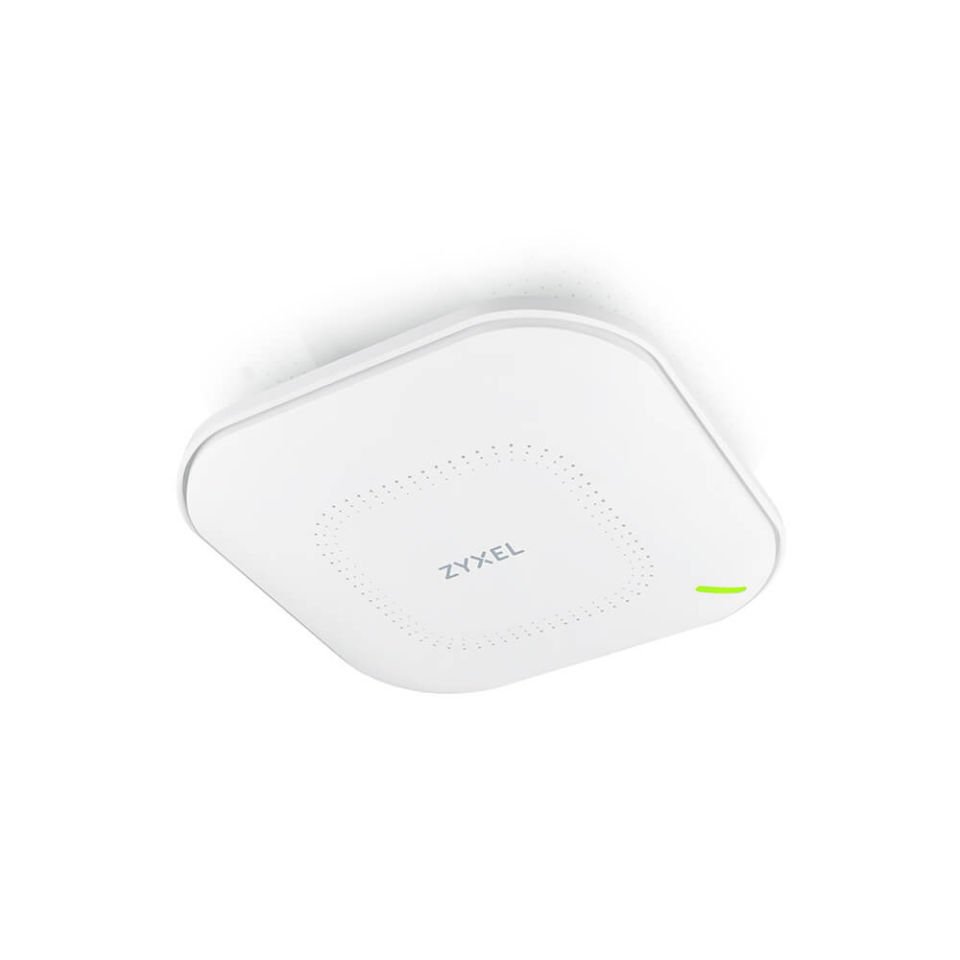

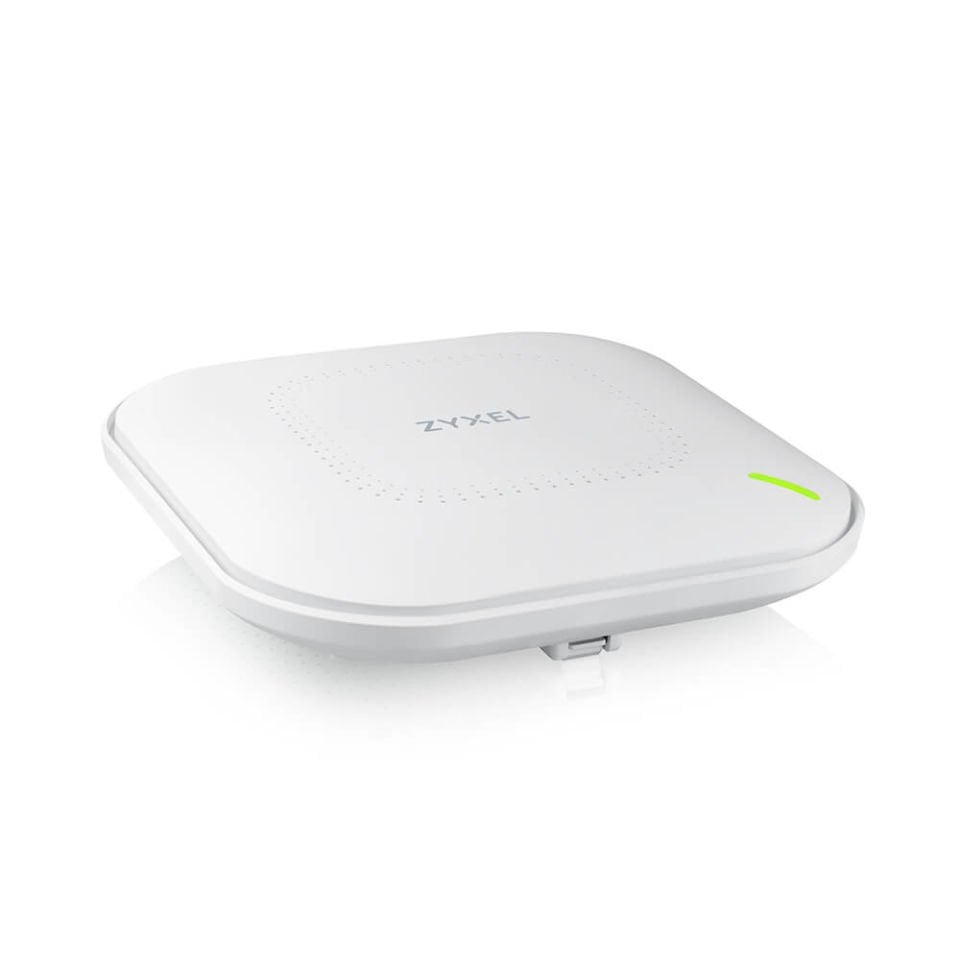

Wax630S - 802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point
27.114,26 TL
Product name | |
Description | 802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point |
Wireless | |
Standard | IEEE 802.11 ax/ac/n/g/b/a |
MIMO | MU-MIMO |
Wireless speed | 2.4GHz: 575 Mbps 5GHz: 2400 Mbps |
Frequency band | 2.4 GHz
|
Bandwidth | 20-, 40-, 80- and 160-MHz |
Conducted typical transmit output power*1 (limited by local regulatory requirements) |
US (2.4GHz/5GHz): 23/28 dBm EU (2.4GHz/5GHz): 19/25 dBm |
RF Design | |

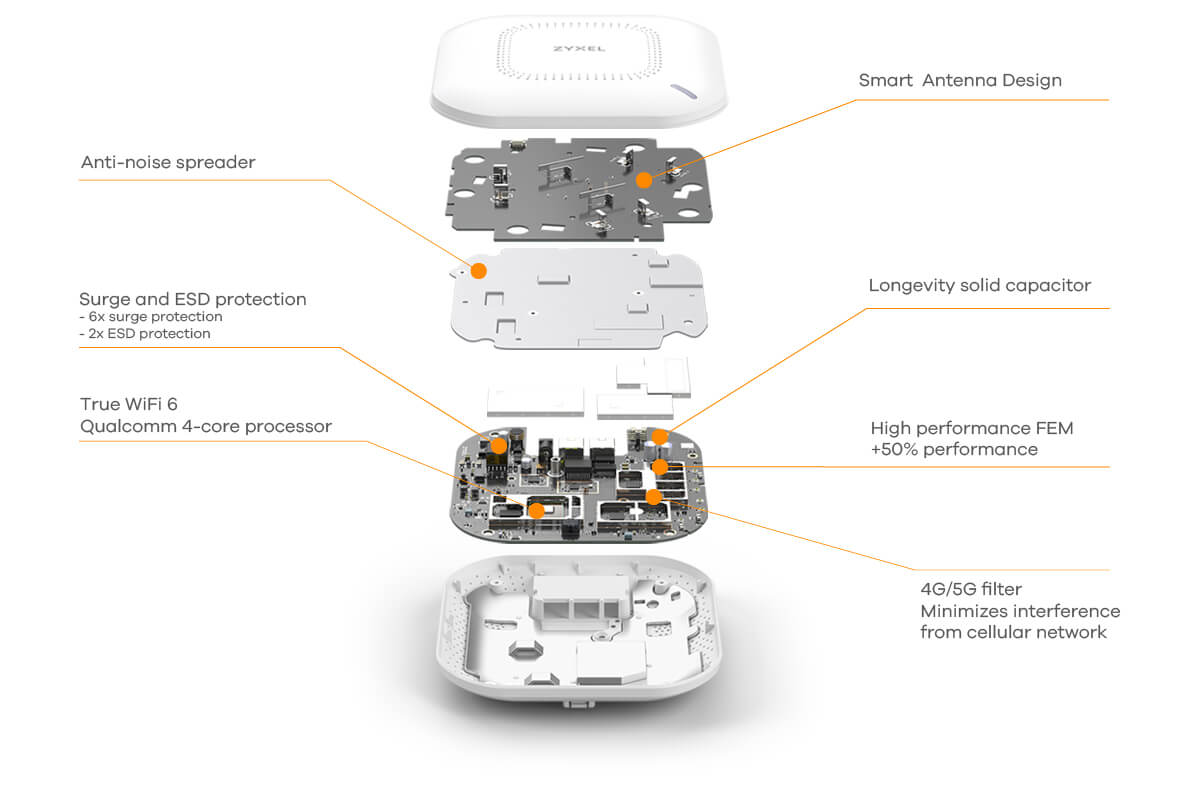

Antenna type | 4x4 + 2x2 smart antenna |
Antenna gain | 2.4GHz: Peak gain 3 dBi 5GHz: Peak gain 4.5 dBi |
Minimum Receive sensitivity | Min. Rx sensitivity up to -101 dBm |
WLAN feature | |
Band Steering | Yes |
WDS/Mesh*2 | Yes |
Fast roaming | Pre-authentication, PMK caching and 802.11r/k/v |
DCS | Yes |
Load balancing | Yes |
Security | |
Encryption |
|
Authentication |
|
Access management |
|
Networking | |
IPv6 | Yes |
VLANs | Yes |
WMM | Yes |
U-APSD | Yes |
Management | |
Operating mode |
|
ZON Utility |
|
Zyxel Wireless Optimizer |
|
Web UI/CLI | Yes |
SNMP | Yes |
Physical Specifications | |
Item | Dimensions (WxDxH)(mm/in.) 180 x 180 x 39/7.09 x 7.09 x 1.54 Weight (g/lb.) 530/1.17 |
Packing | Dimensions (WxDxH)(mm/in.) 228 x 216 x 63/8.98 x 8.5 x 2.48 Weight (g/lb.) 765/1.69 |
Included accessories |
|
MTBF (hr) | 321,114 |
Physical Interfaces | |

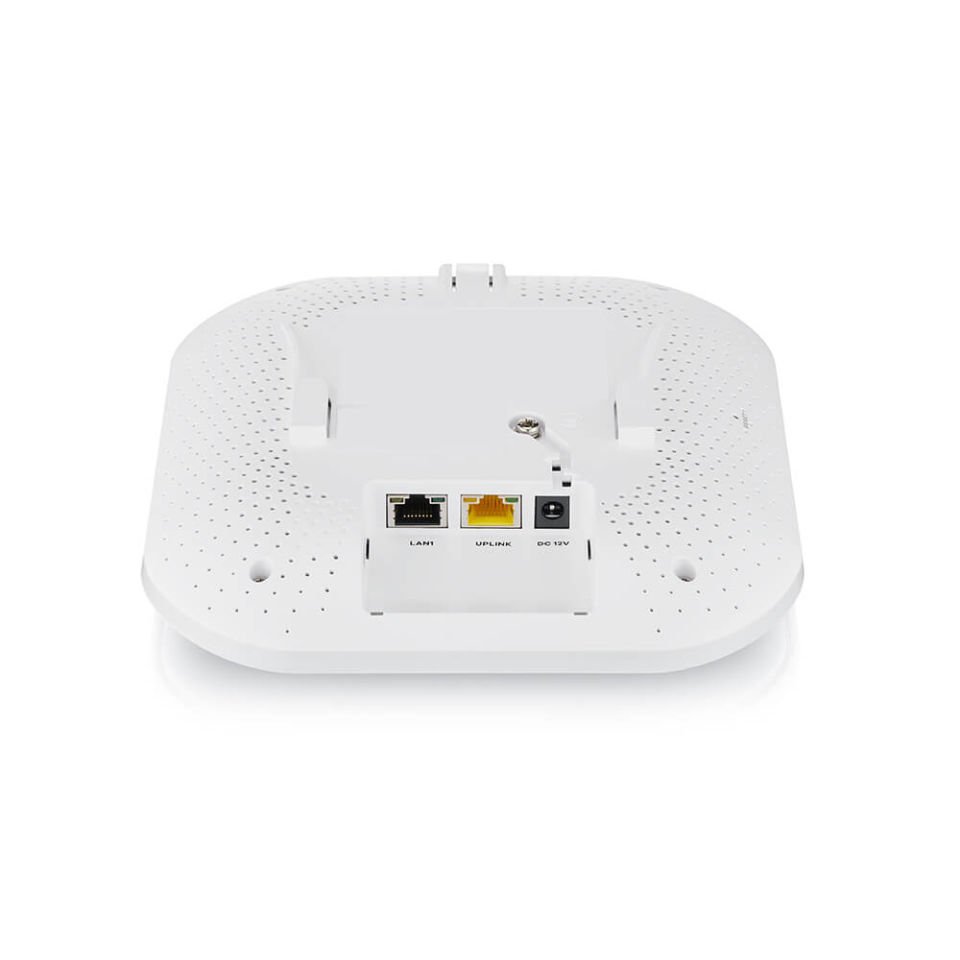

Ethernet port | 1 x 1/2.5Gbps LAN, 1 x 1Gbps LAN |
Power |
|
Environmental Specifications | |
Operating | Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 95% (non-condensing) |
Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 95% (non-condensing) |
Certifications | |
Radio |
|
EMC |
|
Safety |
|
Product name | |
Description | 802.11ax (WiFi 6E) Dual-Radio Unified Pro Access Point |
Wireless | |
Standard | IEEE 802.11 ax/ac/n/g/b/a |
MIMO | MU-MIMO |
Wireless speed | 2.4GHz: 575 Mbps 5GHz: 4800 Mbps 6GHz: 4800 Mbps |
Frequency band | 2.4 GHz
|
Bandwidth | 20-, 40-,80- and 160-MHz |
Conducted typical transmit output power* (limited by local regulatory requirements) |
US (2.4GHz/5GHz) or +/6GHz): 24/28/24dBm EU (2.4GHz/5GHz) or +/6GHz): 18/25/19dBm |
RF Design | |
Antenna type | 4x4 + 2x2 Dual-optimized Antenna |
Antenna gain | 2.4 GHz: Peak Gain 3dBi 5 GHz: Peak Gain 5dBi 6 GHz: Peak Gain 6dBi |
Minimum Receive sensitivity | Min. Rx sensitivity up to -101 dBm |
WLAN feature | |
Band Steering | Yes |
WDS/Mesh | Yes |
Fast roaming | Pre-authentication, PMK caching and 802.11r/k/v |
DCS | Yes |
Load balancing | Yes |
Advanced Cellular Coexistence | Yes |
Security | |
Encryption |
|
Authentication |
|
Access management |
|
Networking | |
IPv6 | Yes |
VLANs | Yes |
WMM | Yes |
U-APSD | Yes |
Management | |
Operating mode |
|
ZON Utility |
|
Zyxel Wireless Optimizer |
|
Web UI/CLI | Yes |
SNMP | Yes |
Physical Specifications | |
Item | Dimensions (WxDxH)(mm/in.): 180 x 180 x 42 mm / 7.09 x 7.09 x 1.65 Weight (g/lb.): 650g/1.43lb |
Packing | Dimensions (WxDxH)(mm/in.): 197 x 190 x 60 mm / 7.76 x 7.48 x 2.36 Weight (g/lb.): 780g/1.72lb |
Included accessories |
|
MTBF (hr) | 711,333 |
Physical Interfaces | |
Ethernet port | 1 x 1/2.5Gbps LAN 1 x 1Gbps LAN |
Power |
|
PoE Modes |
|
Environmental Specifications | |
Operating | Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 95% (non-condensing) |
Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 95% (non-condensing) |
Certifications | |
Radio |
|
EMC |
|
Safety |
|
Kablosuz Standart | : | IEEE802.11 ax/ac/n/g/b/a |
MIMO | : | MU-MIMO |
Kablosuz Hızı | : | 2.4 GHz: 575Mbps / 5 GHz:2400Mbps |
Anten Türü | : | 5 GHz:4x4 / 2.4GHz: 2x2 İkili optimize edilmiş Anten |
Anten Güç Kazancı | : | 2.4GHz: 3 dBi / 5GHz: 6 dBi5 |
Band Steering | : | Evet |
WDS / Mesh | : | Evet |
Çalıştırma Modu | : | Bulut Yönetimli, Denetleyici Yönetim, Bağımsız |
PoE Güç Çekimi | : | 20W |
Ethernet Portu | : | 2x 1 Gbps LAN(PoE PSE dahil) |
